Environmental Protecting 3D Concealed Hinges Satin Chrome Surface Finish
3D Concealed Hinges Introduction
Our 3D Concealed Hinges are made from the thickness of 16mm-34mm&suitable for door thickness from 25-100mm, bearing up to 3 pieces/200 kg, with Satin, Satin Chrome,Satin Nickel, Antique Brass, Antique Copper etc which are more than ten kinds of surface treatment. These hinges are widely used in indoor doors, Fire doors, villa doors, hotel rooms, folding doors, and so on. We believe that there is always one that is suitable for your request.
Do fireproof SOSS Concealed hinges, we are professional and serious!
3D Concealed Hinges Feature:
a.high-quality plating, not easy to oxidation
b.rigid design, not easy to wearness
c.modern beautiful design
d.suitable for heavy-duty doors
3D Concealed Hinges Parameters :
| Name | Environmental Protecting 3D Concealed Hinges Satin Chrome Surface Finish |
| Material: | Zinc alloy Body, Aluminum arm. |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Satin Chrome /Satin Brass Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent |
easy to maintain:
Our 3D Adjustable Hinges are a comprehensive system offering options for wood, steel and aluminum frames, permanent power transfer, a complete range of optimized door capacities, and, of course, the ability to adjust them.
Designers spend time detailing an "invisible" door, they may go through endless rounds of picking veneer to match the grain exactly, and simply want to keep clean and dead-even gaps around their door panels. Because our hinge is adjustable in 3 dimensions large and heavy doors can be installed quickly, saving money for the millworker and installer and insuring it all looks sharp in the end. In reality, for detail-driven designers, nothing is ever really invisible. So, when you open that door, at the very least, the hinge better match the finish of the hardware on the rest of the project.
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.

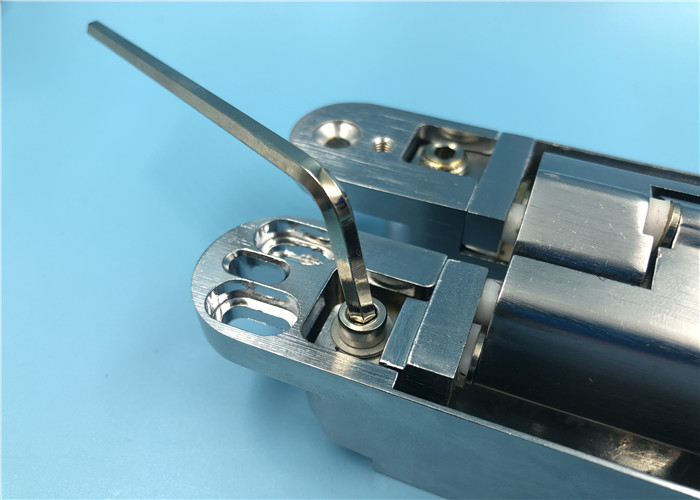

3D Concealed Hinges details
Product Tags:
|
|
Environmental Protecting 3D Concealed Hinges Satin Chrome Surface Finish Images
|
